In-stock MCE Motion Control boards — HC-MPU REV X3 main processor and HC-IOX I/O expansion — for traction elevator control systems. Sales and repair available. Ships nationwide from Hackensack, NJ.
Available Units
Call or email with your part number to confirm stock and pricing.
MCE Motion Control Engineering

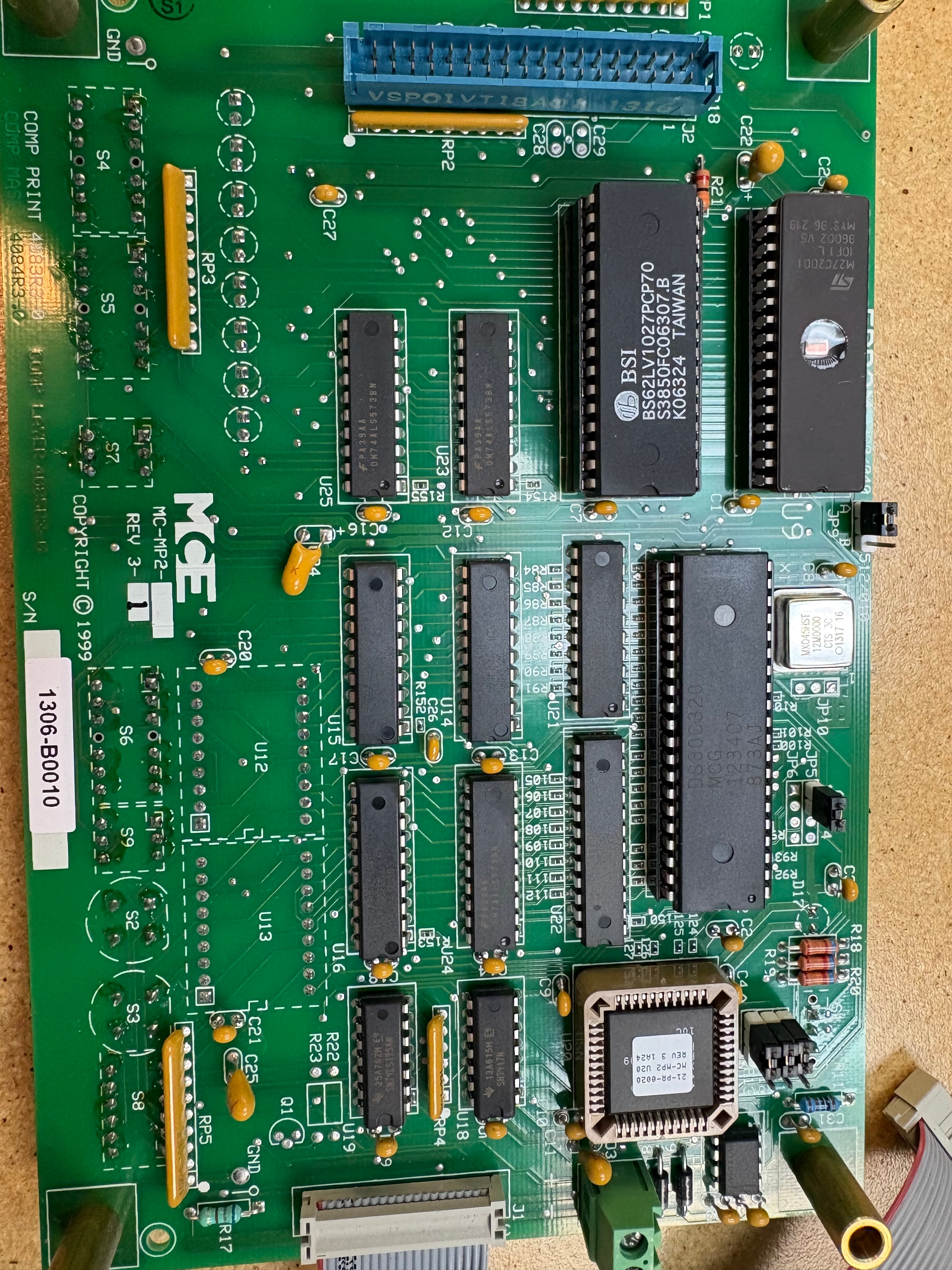

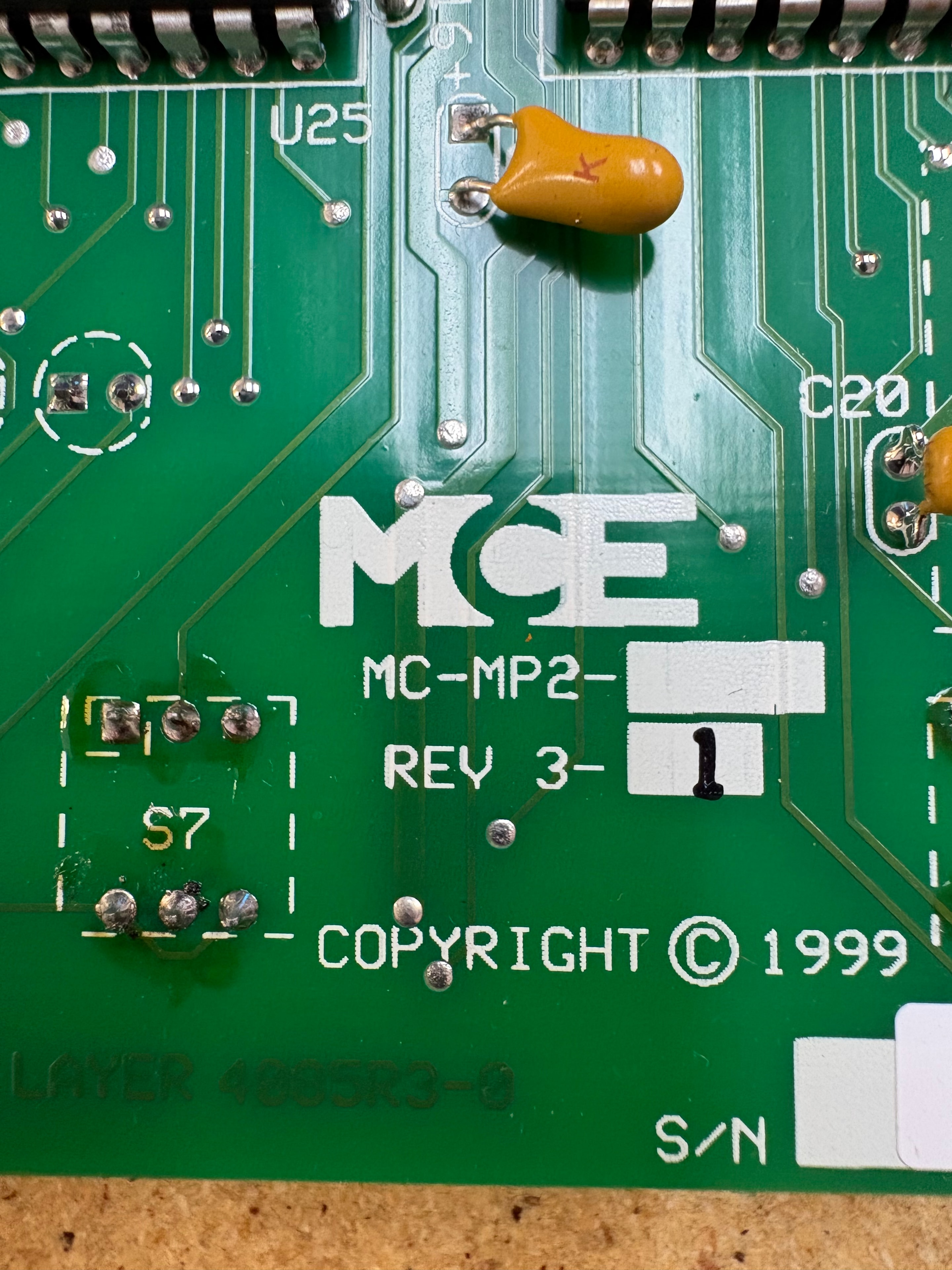

HC-MPU REV X3
Main Processor / MPU Board
- Part No.: HC-MPU REV X3
- Manufacturer: MCE Motion Control Engineering
- Board type: Main processor unit (MPU)
- Revision: X3
- Red PCB construction
- LCD display connector on-board
- Compatible with MCE iControl and iBox traction elevator systems
- 1-year warranty on all units sold by Gemini Elevator Service
MCE Motion Control

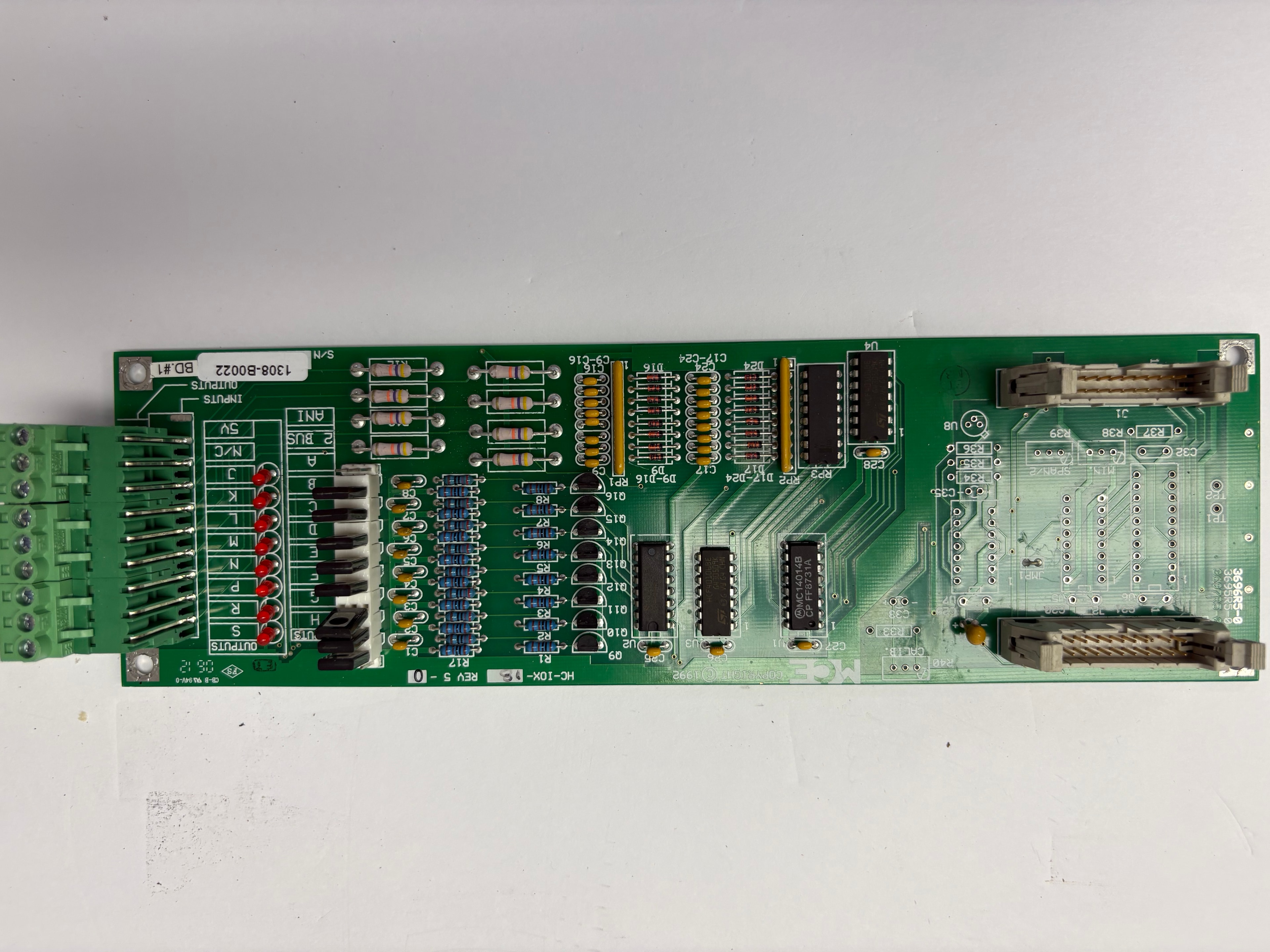

HC-IOX
I/O Expansion Board — BD.#1
- Part No.: HC-IOX
- Board: BD.#1
- Revision: REV 5 – 0
- Serial No.: 1308-B0022
- Copyright: MCE © 1992
- ICs: MC14014B (U3), U4, U8
- Transistor outputs: Q9–Q16 (upper row)
- Diode arrays: D9–D16, D17–D24
- Resistor packs: RP1, RP2, RP3
- Capacitor banks: C9–C16, C17–C24, C27, C28, C32, C35
- Trim pots: CALIB, MIN, SPAN/2 (R33–R39)
- Test points: TP1, TP2, IMP1
- Connectors: J1 ribbon, dual edge connectors (left)
- Output terminals: S, R, P, N, M, L, K, J
- I/O terminals: A, B, C, D, E, F, G, H
- Bus terminals: BUS, 5V, ANI
- Green screw terminal blocks (right edge)
Key features
- HC-MPU REV X3: Main processor board for MCE iControl and iBox traction elevator systems
- HC-IOX: I/O expansion board — adds discrete input and output channels to MCE elevator controllers
- Q9–Q16 transistor output array for floor call and indicator signals
- D9–D24 diode arrays for flyback protection on inductive loads
- Calibration trim pots (CALIB, MIN, SPAN/2) for field adjustment
- BUS and ANI terminals for analog and network signal routing
- Dual ribbon/edge connectors for backplane integration
- Compatible with MCE iControl, iBox, and legacy MCE traction elevator systems
- 1-year warranty on all units sold
1-Year Warranty
All MCE Motion Control boards sold by Gemini Elevator Service carry a full 1-year warranty. We also repair MCE PCBs — send us your failed unit for a quote.
Learn about board repairGet in touch
Call or email with your part number and we'll confirm availability.
(201) 250-8083info@geminielevatorservice.comNeed other boards or elevator parts?
Browse our full in-stock boards inventory or the complete parts catalog — tape guides, relays, power supplies, drives, and more.
