MCE Engineering In Stock
MCE Engineering Elevator Control Boards
In-stock MCE Engineering HC-RDR, HC-UIO, HC-CTL, and HC-DVR elevator control PCBs — sales and repair available. Ships nationwide from Hackensack, NJ.
Available Units
Call or email with your part number to confirm stock and pricing.
MCE Engineering

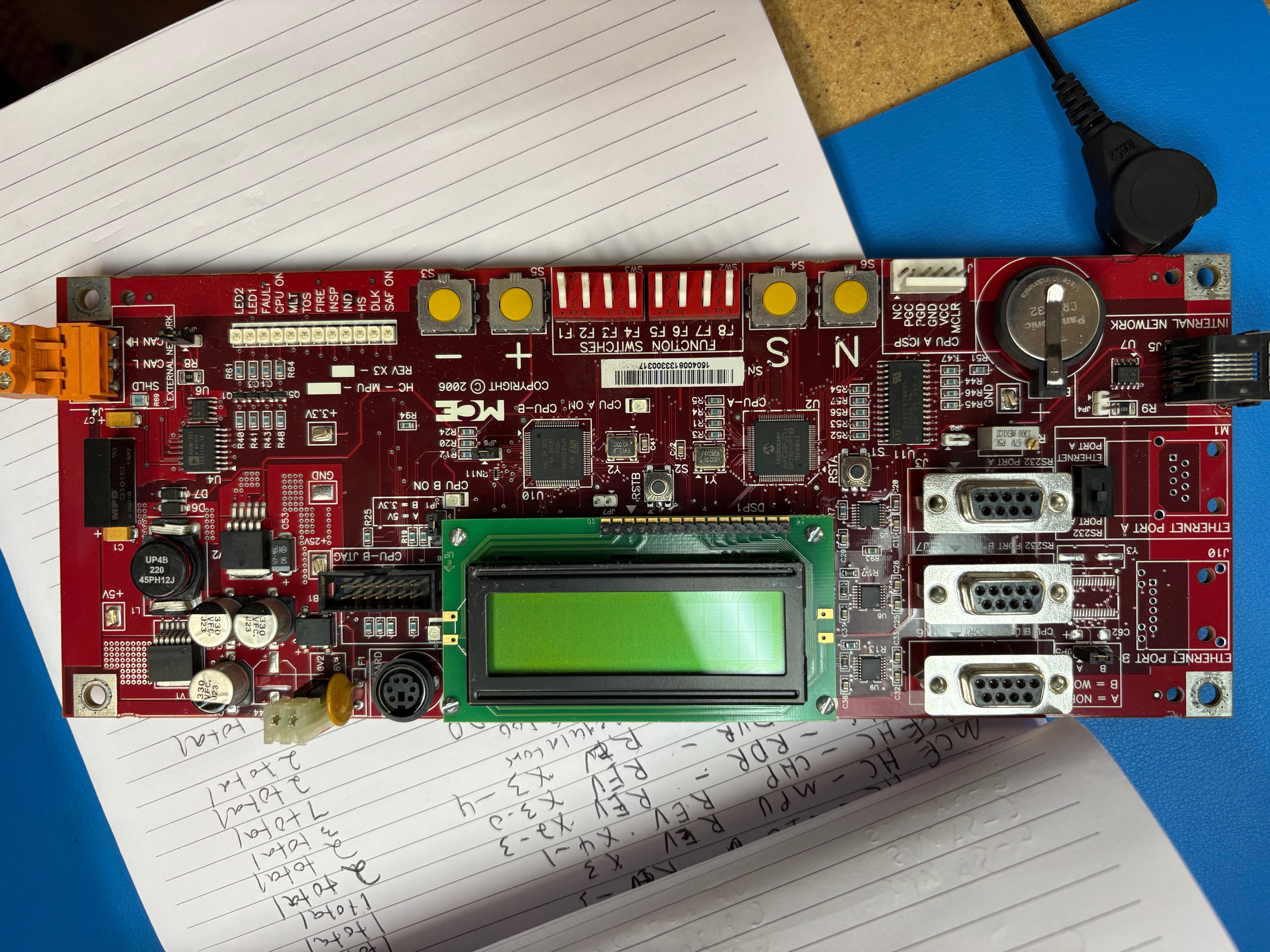

HC-MPU REV X3
Main Processor / CPU Board
- Part No.: HC-MPU (MC-MP2 REV 3-1)
- Part #: 1306-B0010
- Revision: REV X3
- Brand: MCE Engineering
- Type: Main Processor Unit (CPU)
- Compatible with MCE iControl and iBox traction elevator control systems
- Orange push-in terminal blocks for field wiring
- 1-year warranty
MCE Engineering

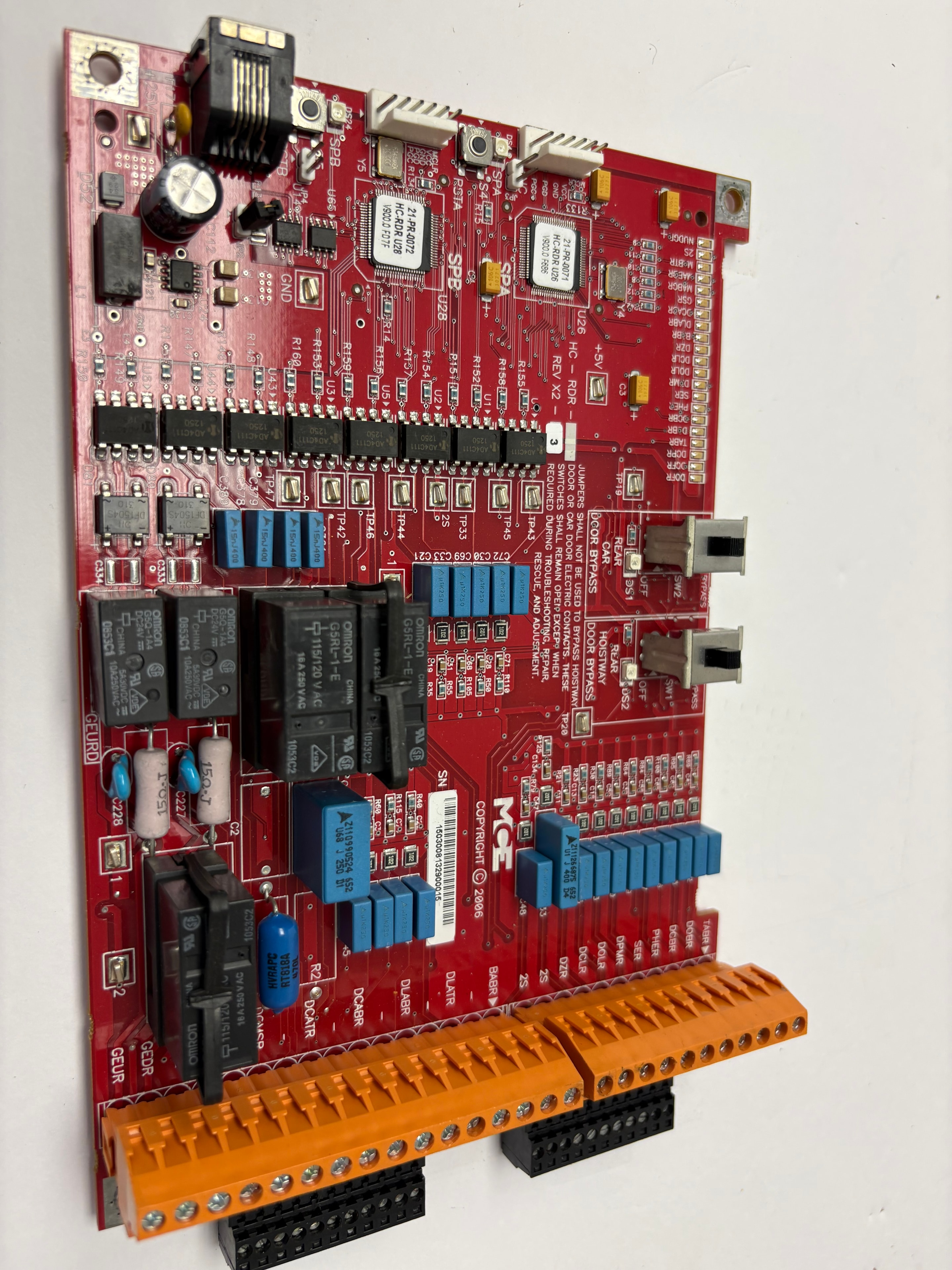

HC-RDR
Reader / Door Control Board
- Part No.: HC-RDR
- Modules: 21-PR-0071 (U26) V900.0 F695, 21-PR-0072 (U28) V900.0 F07F
- Revision: REV X2 – 3
- Copyright: MCE © 2006
- Relays: Omron G5RL-1-E, 16A 250VAC / 115/120VAC
- Relays: Omron G5Q-1A4, 10A 250VAC
- Bypass switches: SW1, SW2 (Rear Car / Rear Hoistway Door Bypass)
- Test points: TP19, TP28, TP33, TP42–TP47
- Terminals: TABR, DOBR, DCBR, PHER, SER, DPMR, DCLR, DZR, 2S, BABR, DLATR, DLABR, DCABR, DCATR, DCMSR, GEDR, GEUR
- SPA, SPB signal pads
MCE Engineering

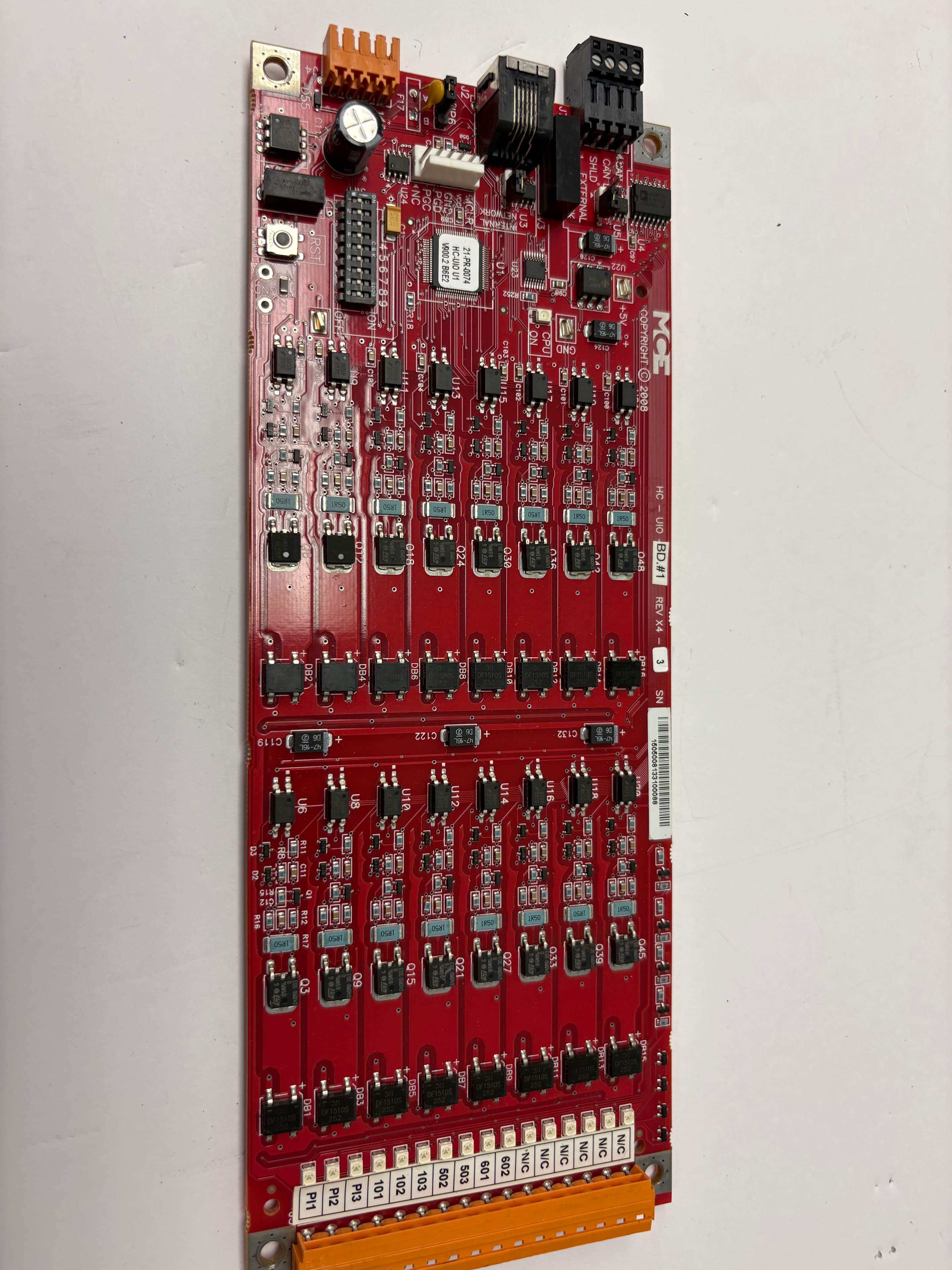

HC-UIO BD.#1
Universal I/O Board
- Part No.: HC-UIO BD.#1
- Module: 21-PR-0074 (U1) V000.2 B6E2
- Revision: REV X4 – 3
- Copyright: MCE © 2008
- Transistor output array: Q3–Q48 (16 channels per side)
- Diode array: DB1–DB16
- ICs: U6–U18 (left bank), U6–U16 (right bank)
- CPU ON indicator LED
- Reset button (RST)
- Connectors: J1, J2, CAN B, SHLD, EXTERNAL, F17
- Terminals: N/C ×6, 602, 601, 503, 502, 103, 102, 101, PI3, PI2, PI1
- Orange push-in terminal blocks both ends
MCE Engineering

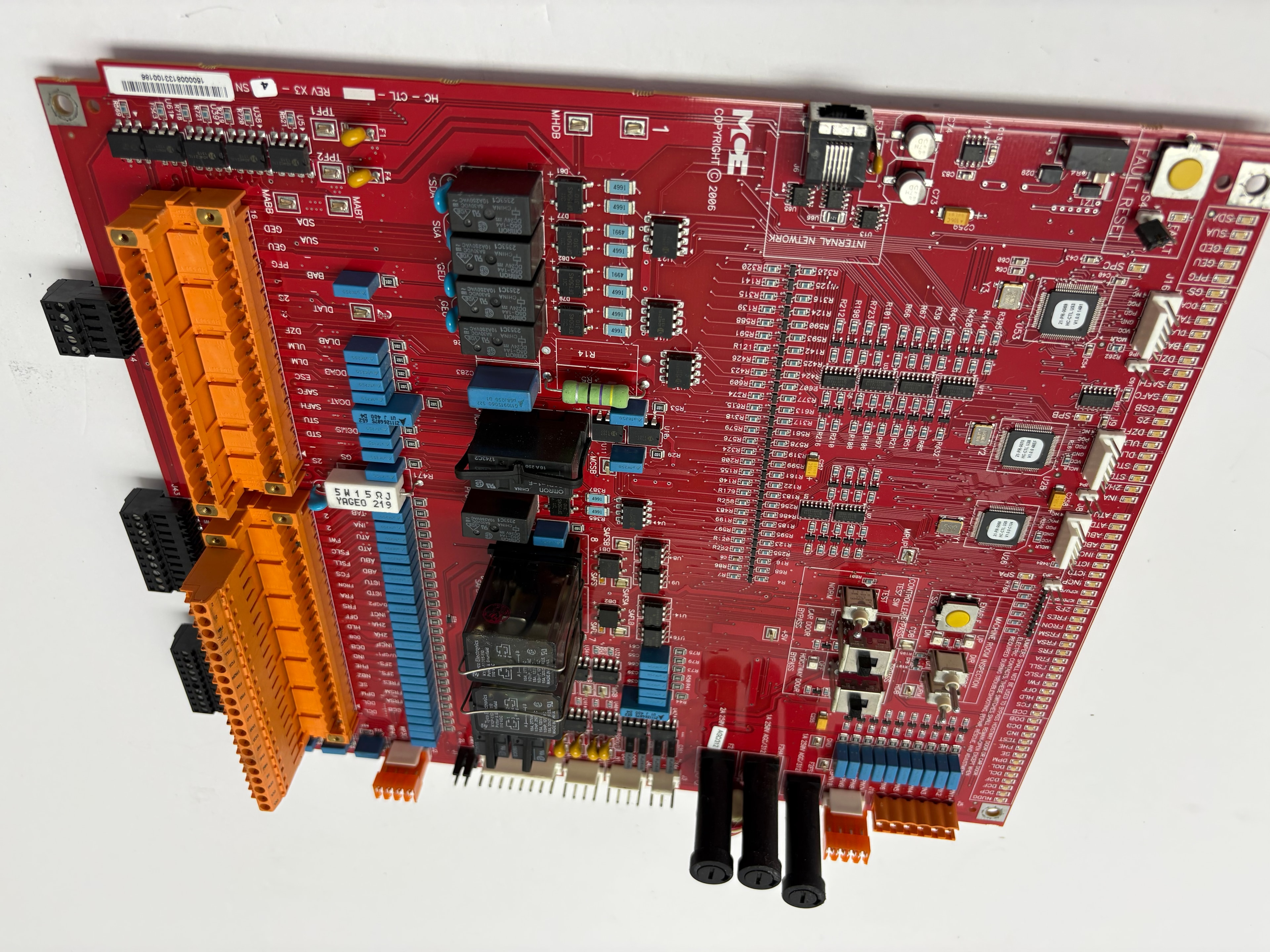

HC-CTL / WHDB
Main Controller Board
- Part No.: HC-CTL / WHDB
- Revision: REV X3 – 4
- Copyright: MCE © 2006
- Relays: Omron G5RL-1-E (multiple), 16A 250VAC
- Capacitor bank onboard
- Internal Network section (lower board area)
- Fault Reset button
- SPB, SPA signal pads
- Terminals (left): ERG, DCP, DCF, DDF, HLD, FW, FRSA, FRSB, FRLL, FRSA, 2CS, DCO, DCL, INCP, ATD, INA, 2HA, STL, DLM, ULM, DZF, CSB, SAFC, SAFC, DZI, BAB, GS, PFG, GEU, GED, SPC
- Terminals (right): STD, STU, SAFH, SAFC, DLM, ULM, DZF, DLAT, 2S, BAB, PFG, GEU, GED, SDA, MAEB, TPF1, TPF2
- Connectors: K1, K2, X1, X2, multiple orange push-in blocks
MCE Engineering

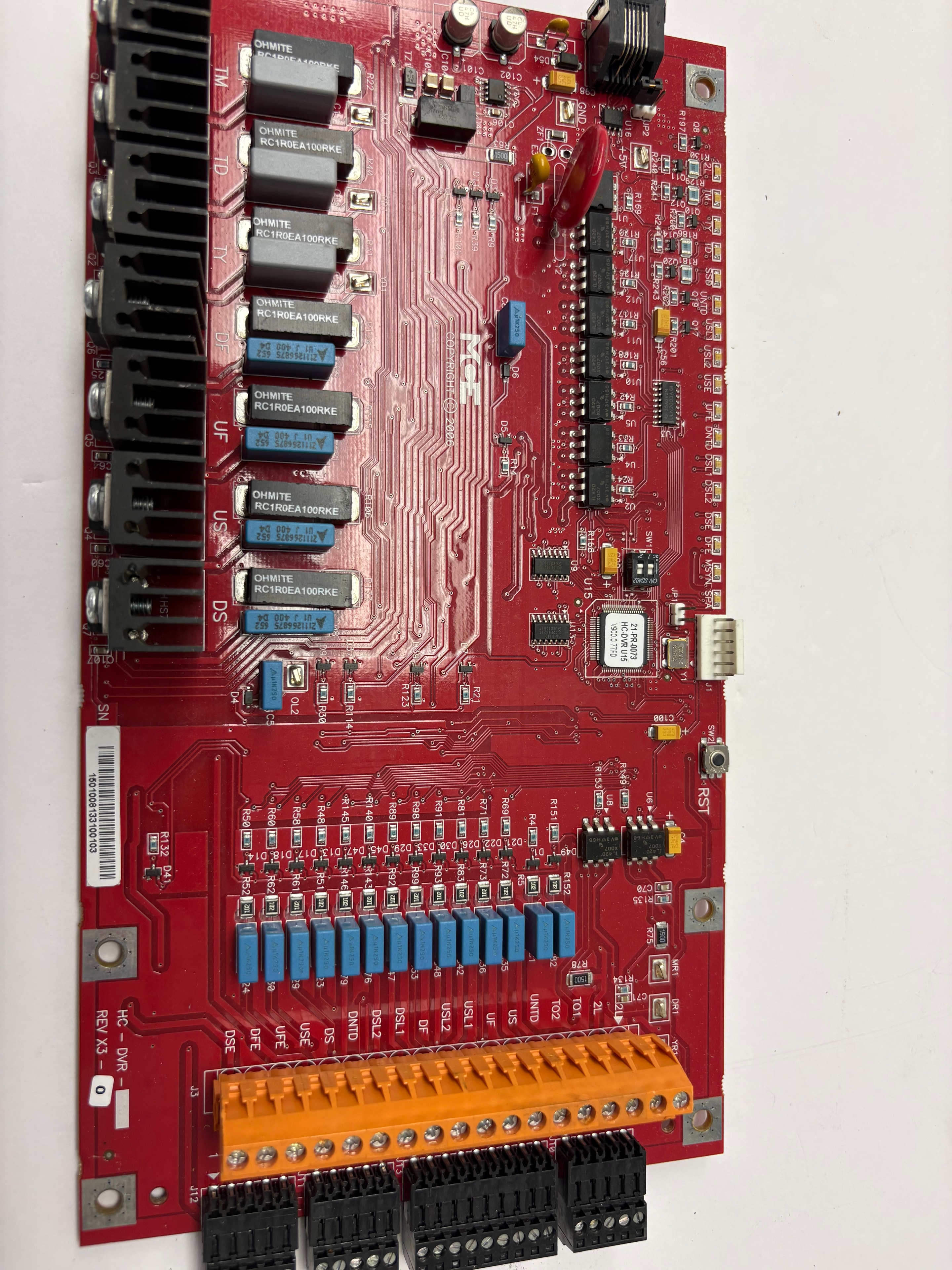

HC-DVR
Drive Interface Board
- Part No.: HC-DVR
- Module: 21-PR-0073 (U15) V900.0 77FD
- Revision: REV X3 – 0
- Copyright: MCE © 2006
- Resistors: Ohmite RC1R0EA100RKE (×8, bottom row)
- Trim pots: blue multi-turn (×16 right bank)
- Reset button (RST)
- Switches: SW1, SW2
- Connectors: J1, J2, J3, JT2
- Terminals (right): 2L, TO1, TO2, UNTD, US, UF, USL1, USL2, DF, DSL1, DSL2, DNTD, DS, USE, UFE, DFE, DSE
- Bottom labels: TM, TD, TY, DP, UF, US, DS
- Signal labels: 2L, M, TY, TD, SSU, UNTD, USL1, USL2, USE, UFE, DNTD, DSL1, DSL2, DSE, DFE, MSYN, SPA
Key features
- HC-MPU REV X3: main processor / CPU board — central processing unit for MCE iControl and iBox elevator control systems
- HC-RDR: door reader and relay board — controls hoistway and car door bypass circuits
- HC-UIO: universal I/O expansion board — 16-channel transistor output array for floor calls and indicators
- HC-CTL / WHDB: main elevator controller board — central logic, relay outputs, and network interface
- HC-DVR: drive interface board — speed reference, leveling, and drive command signals
- All boards feature orange push-in terminal blocks for fast field wiring
- Compatible with MCE iControl, iBox, and related traction elevator control systems
- 1-year warranty on all units sold
1-Year Warranty
All MCE Engineering boards sold by Gemini Elevator Service carry a full 1-year warranty. We also repair MCE PCBs — send us your failed unit for a quote.
Learn about board repairGet in touch
Call or email with your part number and we'll confirm availability.
(201) 250-8083info@geminielevatorservice.comNeed other boards or elevator parts?
Browse our full in-stock boards inventory or the complete parts catalog — tape guides, relays, power supplies, drives, and more.
